Mutoh Belt

$47.38

Category: Tag:

Description

Mutoh 1204 1304 X axis Speed Reduction Belt

Mutoh Belt 1204 1304 RJ-900C DF-49046
Mutoh Belt 1204 1304 RJ-900C DF-49046

Price: $9.95 USD[wp_cart_button name=”Mutoh Belt 1204 1304 RJ-900C DF-49046″ price=”9.95″]

This Mutoh Belt speed reduction belt for the X axis is suitable for Mutoh Valuejet 1204 1304 1324 RJ-900C printers. DF-49046.

Mutoh CR Speed Reduction Belt

CR Speed Reduction Belt
CR Speed Reduction Belt

Price: $29.95 USD[wp_cart_button name=”Mutoh CR Speed Reduction Belt” price=”29.95″]

This Mutoh Belt speed reduction belt for the X axis is suitable for Mutoh Valuejet 1604 printers. This belt is connected between the PF motor and the encoder disc. This is the original part (number DF-43883). This belt has a diameter of 14.3cm. Mutoh Valuejet 1604 / Valuejet 1614 / Valuejet 1608 Hybrid / Valuejet 1604W. DF-43621 Compatible with the following printers: Mutoh Osprey 75 / Osprey 102 / Blizzard 65 / Blizzard 90 / RJ-8000-50 (Falcon II) / RJ-8000-64 (Falcon II) / RJ-8000-87 (Falcon II) / Rockhopper II-2H / Rockhopper II-4H / Rockhopper II 50 / Rockhopper II 64 / Rockhopper II 87 / Rockhopper 3 65 / Rockhopper 3 90 / Rockhopper 3 Extreme 65 / Rockhopper 3 Extreme 90 / Spitfire 65 / Spitfire 90 / Spitfire 100 Extreme / Toucan 64 4 colours / Toucan 64 6 colours / Toucan 87 / Toucan Hybrid / Viper 100 / Viper 100 TX Extreme / Viper 65 / Viper 90 / Viper TX 65 / Viper TX 90 / Viper Extreme 65 / Viper Extreme 90 / Viper TX Extreme 65 / Viper TX Extreme 90.

Mutoh Belt VJ-1604 Steel Belt

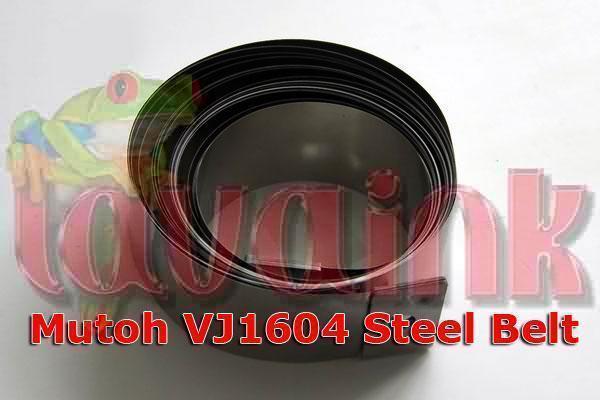

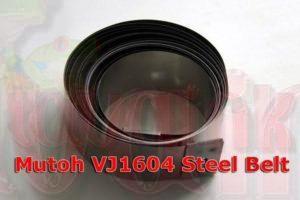

Mutoh VJ 1614 Steel Belt | Mutoh Valuejet 1604 Steel Belt DF-43937 | Mutoh 1604 Steel Belt
Mutoh VJ 1614 Steel Belt | Mutoh Valuejet 1604 Steel Belt DF-43937 | Mutoh 1604 Steel Belt
Mutoh Steel belt VJ-1604

Price: $29.95 USD[wp_cart_button name=”Mutoh Steel belt VJ-1604″ price=”29.95″]

This Mutoh Belt speed reduction belt for the X axis is suitable for Mutoh Valuejet 1604 printers. This Mutoh Steel Belt is connected between the PF motor and the encoder disc. This is the original part (number DF-43883). Mutoh Valuejet 1604 / Valuejet 1614 / Valuejet 1608 Hybrid / Valuejet 1608HS / Valuejet 1604W / Valuejet 1628TD / Valuejet 1638 / Valuejet 1638W / Valuejet 1638WX / Valuejet 1638X

Mutoh Belt VJ-1614 Steel Belt

Mutoh VJ 1614 Steel Belt
Mutoh VJ 1614 Steel Belt

Price: $34.95 USD[wp_cart_button name=”Mutoh Steel belt VJ-1614″ price=”34.95″]

This Mutoh Belt speed reduction belt for the X axis is suitable for Mutoh Valuejet 1614 printers. This Mutoh Steel Belt is connected between the PF motor and the encoder disc. This is the original part (number DF-43883).

Mutoh Belt VJ-1624 Steel Belt

Mutoh VJ 1624 Steel Belt DG-43002
Mutoh VJ 1624 Steel Belt DG-43002

Price: $39.95 USD[wp_cart_button name=”Mutoh Steel belt VJ-1624″ price=”39.95″]

This Mutoh Belt speed reduction belt for the X axis is suitable for Mutoh Valuejet 1624 printers CR Belt Assy. This Mutoh Steel Belt is connected between the PF motor and the encoder disc. This is the original part (number DF-43883). Mutoh Valuejet 1624 Valuejet.

Mutoh Belt VJ-1638 Steel Belt

Mutoh VJ 1638 Steel Belt
Mutoh VJ 1638 Steel Belt

Price: $34.95 USD[wp_cart_button name=”Mutoh Steel belt VJ-1638″ price=”34.95″]

This Mutoh Belt speed reduction belt for the X axis is suitable for Mutoh Valuejet 1614 printers. This Mutoh Steel Belt is connected between the PF motor and the encoder disc. This is the original part (number DF-43883). Mutoh Valuejet Valuejet 1638 Valuejet 1638W Valuejet 1638WX Valuejet 1638X

Mutoh Belt VJ-2606 Steel Belt

Mutoh VJ-2606 Steel Belt
Mutoh VJ-2606 Steel Belt

Price: $119.95 USD[wp_cart_button name=”Mutoh Steel belt VJ-2606″ price=”119.95″]

This Mutoh Belt speed reduction belt for the X axis is suitable for Mutoh Valuejet 2606 printers. This Mutoh Steel Belt is connected between the PF motor and the encoder disc. This is the original part (number DF-43883). Mutoh Valuejet Valuejet 2606 Valuejet 2638 Valuejet 2624 Valuejet 2628.

Mutoh Belt VJ-2628 Steel Belt

Mutoh VJ-2606 Steel Belt
Mutoh VJ-2628 Steel Belt

Price: $119.95 USD[wp_cart_button name=”Mutoh Steel belt VJ-2638″ price=”119.95″]

This Mutoh Belt speed reduction belt for the X axis is suitable for Mutoh Valuejet 2628 printers. This Mutoh Steel Belt is connected between the PF motor and the encoder disc. This is the original part (number DF-43883). Mutoh Valuejet 2606 Valuejet 2638 Valuejet 2624 Valuejet 2628.

Mutoh Steel Belt RJ-900

Mutoh Steel Belt RJ-900
Mutoh Steel Belt RJ-900

Price: $29.95 USD[wp_cart_button name=”Mutoh Steel Belt RJ-900″ price=”29.95″]

This is Mutoh Steel Belt RJ-900.

Mutoh Steel Belt RJ-4100

Mutoh Steel Belt RJ-4100
Mutoh Steel Belt RJ-4100

Price: $29.95 USD[wp_cart_button name=”Mutoh Steel Belt RJ-4100″ price=”29.95″]

This is Mutoh Steel Belt RJ-4100.

Mutoh Steel Belt RJ-6100

Mutoh Steel Belt RJ-6100
Mutoh Steel Belt RJ-6100

Price: $29.95 USD[wp_cart_button name=”Mutoh Steel Belt RJ-6100″ price=”29.95″]

This is Mutoh Steel Belt RJ-6100. DE-49764C. Mutoh RJ-6100-46 (Falcon) / RJ-6100-46+ (Falcon Plus) / Rockhopper 48 (Falcon Outdoor).

Mutoh Steel Belt RJ-8000

Mutoh Steel Belt RJ-8000
Mutoh Steel Belt RJ-8000

Price: $39.95 USD[wp_cart_button name=”Mutoh Steel Belt RJ-8000″ price=”29.95″]

This is Mutoh Steel Belt RJ-8000

Mutoh Steel Belt RH2

Mutoh Steel Belt RH2
Mutoh Steel Belt RH2

Price: $129.95 USD[wp_cart_button name=”Mutoh Steel Belt RH2″ price=”129.95″]

This is Mutoh Steel Belt RH-2

Mutoh Steel Belt Spitfire 65

Mutoh Steel Belt Spitfire 65
Mutoh Steel Belt Spitfire 65

Price: $71.95 USD[wp_cart_button name=”Mutoh Steel Belt Spitfire 65″ price=”71.95″]

This is Mutoh Steel Belt Mutoh Steel Belt Spitfire 65.

Mutoh Steel Belt Spitfire 90

Mutoh Steel Belt Spitfire 90
Mutoh Steel Belt Spitfire 90

Price: $74.95 USD[wp_cart_button name=”Mutoh Steel Belt Spitfire 90″ price=”74.95″]

This is Mutoh Steel Belt Mutoh Steel Belt Spitfire 90.

Mutoh Steel Belt Spitfire 100

Mutoh Steel Belt Spitfire 100
Mutoh Steel Belt Spitfire 100

Price: $79.95 USD[wp_cart_button name=”Mutoh Steel Belt Spitfire 100″ price=”79.95″]

This is Mutoh Steel Belt Mutoh Steel Belt Spitfire 100 ME-80609. Mutoh Spitfire 100 Extreme / Viper 100 / Viper 100 TX Extreme.

Mutoh Steel Belt Toucan LT 64

Mutoh Steel Belt Toucan LT 64
Mutoh Steel Belt Toucan LT 64

Price: $39.95 USD

[wp_cart_button name=”Mutoh Steel Belt Toucan LT 64″ price=”39.95″]

This is Mutoh Steel Belt Toucan LT 64.

Mutoh Steel Belt Toucan LT 87

Mutoh Steel Belt Toucan LT 87
Mutoh Steel Belt Toucan LT 87

Price: $59.95 USD

[wp_cart_button name=”Mutoh Steel Belt Toucan LT 87″ price=”59.95″]

This is Mutoh Steel Belt Toucan LT 87.

Mutoh Steel Belt Viper 90

Mutoh Steel Belt Viper 90
Mutoh Steel Belt Viper 90

Price: $49.95 USD

[wp_cart_button name=”Mutoh Steel Belt Viper 90″ price=”49.95″]

This is Mutoh Steel Belt Viper 90. Mutoh Blizzard 90 / RJ-8000-87 (Falcon II) / Rockhopper II-2H / Rockhopper II-4H / Rockhopper II 87 / Rockhopper 3 90 / Rockhopper 3 Extreme 90 / Spitfire 90 / Viper 90 / Viper TX 90 / Viper Extreme 90 / Viper TX Extreme 90

Mutoh Steel Belt Viper 100

Mutoh Steel Belt Viper 100
Mutoh Steel Belt Viper 100

Price: $79.95 USD

[wp_cart_button name=”Mutoh Steel Belt Viper 100″ price=”79.95″]

This is Mutoh Steel Belt Viper 100. number ME-80609. Mutoh Spitfire 100 Extreme / Viper 100 / Viper 100 TX Extreme.

Mutoh Albatros Steel Belt – WN-4L477 (= WN-4L896)

Mutoh Albatros Steel Belt
Mutoh Albatros Steel Belt

Price: $29.95 USD[wp_cart_button name=”Mutoh Albatros Steel Belt” price=”29.95″]

This is Mutoh Albatros Steel Belt – WN-4L477 (= WN-4L896). This is the original Mutoh part (number WN-4L477 (= WN-4L896)).Mutoh PJ-1304NX (Albatros) .

Mutoh Belt VJ-1204 CR Belt

Mutoh Belt VJ-1204 CR Belt
Mutoh Belt VJ-1204 CR Belt

Price: $39.95 USD

[wp_cart_button name=”Mutoh Belt VJ-1204 CR Belt” price=”39.95″]

This Mutoh Belt CR Belt A0 assy is suitable for Mutoh Valuejet 1204 printers. This is the original Mutoh part (number DF-49045). This CR Belt A0 is 332cm long. Mutoh RJ-900C (Drafstation) RJ-900X (Drafstation) Valuejet 1204

Mutoh Belt VJ-1304 CR Belt

Mutoh Belt VJ-1304 CR Belt
Mutoh Belt VJ-1304 CR Belt

Price: $39.95 USD

[wp_cart_button name=”Mutoh Belt VJ-1304 CR Belt” price=”39.95″]

This Mutoh Belt CR Belt A0 assy is suitable for Mutoh Valuejet 1304 printers. This is the original Mutoh part (number DF-49045). This CR Belt A0 is 402cm long. Valuejet 1304

Mutoh Steel Belt Blizzard 65

Mutoh Steel Belt Blizzard 65
Mutoh Steel Belt Blizzard 65

Price: $39.95 USD

[wp_cart_button name=”Mutoh Steel Belt Blizzard 65″ price=”39.95″]

This Mutoh Steel Belt Blizzard 65 is 25mm width.

Mutoh Steel Belt Blizzard 90

Mutoh Steel Belt Blizzard 90
Mutoh Steel Belt Blizzard 90

Price: $49.95 USD

[wp_cart_button name=”Mutoh Steel Belt Blizzard 90″ price=”49.95″]

This Mutoh Steel Belt Blizzard 90 is 25mm width. Mutoh Blizzard 90 / RJ-8000-87 (Falcon II) / Rockhopper II-2H / Rockhopper II-4H / Rockhopper II 87 / Rockhopper 3 90 / Rockhopper 3 Extreme 90 / Spitfire 90 / Viper 90 / Viper TX 90 / Viper Extreme 90 / Viper TX Extreme 90

Mutoh Steel Belt Falcon Outdoor 36

Mutoh Steel Belt Falcon Outdoor 36
Mutoh Steel Belt Falcon Outdoor 36

Price: $39.95 USD

[wp_cart_button name=”Mutoh Steel Belt Falcon Outdoor 36″ price=”39.95″]

This Mutoh Steel Belt Falcon Outdoor 36 is 25mm width.

Mutoh Steel Belt Falcon Outdoor 48

Mutoh Steel Belt Falcon Outdoor 48
Mutoh Steel Belt Falcon Outdoor 48

Price: $39.95 USD

[wp_cart_button name=”Mutoh Steel Belt Falcon Outdoor 48″ price=”39.95″]

This Mutoh Steel Belt Falcon Outdoor 48 is 25mm width.

Mutoh Steel Belt Falcon Outdoor 62

Mutoh Steel Belt Falcon Outdoor 62
Mutoh Steel Belt Falcon Outdoor 62

Price: $49.95 USD

[wp_cart_button name=”Mutoh Steel Belt Falcon Outdoor 62″ price=”49.95″]

This Mutoh Steel Belt Falcon Outdoor 62 is 25mm width.

Mutoh Steel Belt RH 43

Mutoh Steel Belt RH 43
Mutoh Steel Belt RH 43

Price: $39.95 USD

[wp_cart_button name=”Mutoh Steel Belt RH 43″ price=”39.95″]

This Mutoh Steel Belt RH 43 is 25mm width.

Mutoh Steel Belt RH 46

Mutoh Steel Belt RH 46
Mutoh Steel Belt RH 46

Price: $39.95 USD

[wp_cart_button name=”Mutoh Steel Belt RH 46″ price=”39.95″]

This Mutoh Steel Belt RH 46 is 25mm width.

Mutoh Steel Belt RH 48

Mutoh Steel Belt RH 46
Mutoh Steel Belt RH 48

Price: $39.95 USD

[wp_cart_button name=”Mutoh Steel Belt RH 48″ price=”39.95″]

This Mutoh Steel Belt RH 48 is 25mm width.

Mutoh Steel Belt RH 60

Mutoh Steel Belt RH 46
Mutoh Steel Belt RH 60

Price: $39.95 USD

[wp_cart_button name=”Mutoh Steel Belt RH 60″ price=”39.95″]

This Mutoh Steel Belt RH 60is 25mm width.

Mutoh Steel Belt RH 62

Mutoh Steel Belt RH 62
Mutoh Steel Belt RH 62

Price: $39.95 USD

[wp_cart_button name=”Mutoh Steel Belt RH 62″ price=”39.95″]

This Mutoh Steel Belt RH 62 is 25mm width.

Mutoh Steel Belt RH 64

Mutoh Steel Belt RH 64
Mutoh Steel Belt RH 64

Price: $39.95 USD

[wp_cart_button name=”Mutoh Steel Belt RH 64″ price=”39.95″]

This Mutoh Steel Belt RH 62 is 25mm width. This steel belt of 64 inches is suitable for Mutoh Rockhopper 3 65 and Spitfire 65 printers. number DF-42874. This Belt is 475cm long.

Mutoh Steel Belt RH 87

Mutoh Steel Belt RH 64
Mutoh Steel Belt RH 87

Price: $49.95 USD

[wp_cart_button name=”Mutoh Steel Belt RH 87″ price=”49.95″]

This Mutoh Steel Belt RH 87 is 25mm width.

Mutoh Steel Belt RH 90

Mutoh Steel Belt RH 90
Mutoh Steel Belt RH 90

Price: $49.95 USD

[wp_cart_button name=”Mutoh Steel Belt RH 90″ price=”49.95″]

This Mutoh Steel Belt RH 90 is 25mm width.

Mutoh Steel Belt Viper 65

Mutoh Steel Belt Viper 65
Mutoh Steel Belt Viper 65

Price: $39.95 USD

[wp_cart_button name=”Mutoh Steel Belt Viper 65″ price=”39.95″]

This is Mutoh Steel Belt Viper 65.

Osprey 75 Steel Belt (19) Assy – DF-47847

Mutoh Osprey 75 Steel Belt
Mutoh Osprey 75 Steel Belt

Price: $49.95 USD

[wp_cart_button name=”Mutoh Osprey 75 Steel Belt” price=”49.95″]

Osprey 75 Steel Belt is suitable for Mutoh Osprey 75 printers. The original Mutoh part (number DF-47847). This Steel Belt is 5535mm long and 25mm wide.

Osprey 102 Steel Belt (26) Assy – DF-47848

Mutoh Osprey 102 Steel Belt
Mutoh Osprey 102 Steel Belt

Price: $39.95 USD

[wp_cart_button name=”Mutoh Osprey 102 Steel Belt” price=”39.95″]

This generic Steel Belt (26) Assy is suitable for Mutoh Osprey 102 printers. This is a high quality generic part similar to Mutoh part (number DF-47848). This Steel Belt (26) Assy is 690cm long and 2.5cm wide. Mutoh does not supply this belt anymore as it was discontinued.

Osprey Steel Belt (33) Assy – DF-49599

Mutoh Osprey 130 Steel Belt
Mutoh Osprey 130 Steel Belt

Price: $99.95 USD

[wp_cart_button name=”Mutoh Osprey 130 Steel Belt” price=”99.95″]

This Steel Belt (33) Assy is suitable for Mutoh Osprey printers. This is the original Mutoh part (number DF-49599). This Steel Belt (33) Assy is 843.5cm long and 2.5cm wide.

Osprey 130 STEEL BARE (33NX) – DF-49115

Mutoh Osprey 130 Steel Belt
Mutoh Osprey 130 Steel Belt

Price: $189.95 USD

[wp_cart_button name=”Osprey 130 STEEL BARE (33NX) – DF-49115″ price=”189.95″]

This STEEL BARE (33NX) is suitable for Mutoh Osprey 130 printers. This is the original Mutoh part (number DF-49115 replacing number DE-36592). This Steel belt is 300cm long and 8cm wide.

How to replace mutoh steel belt

mutoh steel belt

adjust two screws that controls the tension on left side of the printer, have someone push your carriage from left to right slowly while you turning the screws to see if the belt is aligned. you can say that its aligned if its not riding up and down.
4.6.2. Replacing the steel belt
Caution :When replacing the steel belt, be careful not to cut your hands by the belt.
Notes : Do not damage the steel belt. Remove following covers before replacing the steel belt.

  1. Side cover R: refer to “Removing side cover R”
  2. Side cover L: refer to “Removing side cover L”
  3. Front cover: refer to “Removing the front cover”
  4. Carriage cover: refer to “Removing the carriage cover”
  5. Y rail cover: refer to “Removing the Y rail cover”
  6. Unlock the head. Notes : Refer to “Head Lock Menu”
  7. Move the carriage from the capping position to the left.
  8. Rotate the 2 steel belt adjustment screws counterclockwisely to loosen the steel belt. 1 = Steel belt adjustment screws 2 = Steel belt
  9. Remove the 2 screws fixing the steel belt. 1 = Screws fixing the steel belt 2 = Steel belt
  10. Replace the steel belt.Notes : Be careful when handling the steel belt. The steel belt may be cut off when
  11. accreting dust to it or creasing it.
  12. Reinstall all parts in the opposite order of the removal procedure.
  13. Perform steel belt tension adjustment according to “Steel belt tension adjustment”.

Notes : Be careful when handling the steel belt. The steel belt may be cut off when accreting dust to it or creasing it.
The driven pulley shaft is installed one way only. Refer to “Service Parts List/Exploded Views/Configuration Diagrams”, to install it correctly so that the bearing stoppers are on top.
After installing the CR slave pulley assembly, move the carriage to the left and right manually to confirm that the steel belt has been set equally in the center of the CR actuator pulley and the CR slave pulley assembly.

====================
STEEL BELT TENSION ADJUSTMENT
The procedure for adjusting the steel belt tension is explained below. This section explains the procedure for adjusting steel belt tension. When removing/installing the steel belt, adjust its tension.
Tools required for work: The following tools are required when adjusting the tension of the steel belt.
Tension gauge: max. 2.0 N (200 g)
Steel belt tension attachment 2: for gauge diameter 2mm (0.08in.) or less
Notes : Refer to “jig and Tool list”. Adjustment Procedure
Use the following procedure to adjust the tension of the steel belt.

  1. Place the tension gauge at the center of the steel belt. 1 = steel belt 2 = Tension gauge. Notes : The regulation values for the tension of the steel belt are shown below. 1. 50 inch, 64 inch specifications: 1.0 N +- 0.1 N (100 g +- 10 g) 2. 87 inch specifications: 0.9 N +- 0.1 N (90 g +- 10 g)
  2. If the tension of the steel belt is not within the range of regulated values, adjust the steel belt tension screws. 1 = Steel belt 2 = Steel belt tension screw 3 = CR slave pulley
  3. Move the CR cursor to the left and right once or twice. Adjust the CR driven pulley until the upper and lower margins are identical.

Caution : If the tension is not equivalent across the entire belt, it could snap during operation.

mutoh hybrid printer at www.LavaPrint.com

Mutoh Belt

Mutoh Belt for VJ Valuejet Blizzard Falcon Outdoor RH Spitfire

Mutoh Belt for VJ Valuejet 1204 1304 1324 1604 1614 1624 1628 2606 Blizzard Falcon Outdoor RH Spitfire Toucan LT Viper Osprey Viper Extreme 65 90
